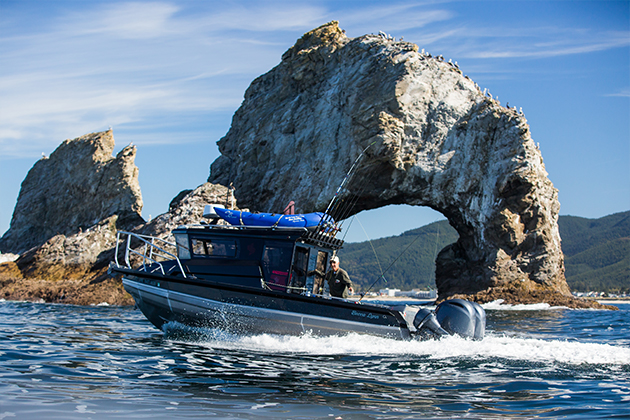

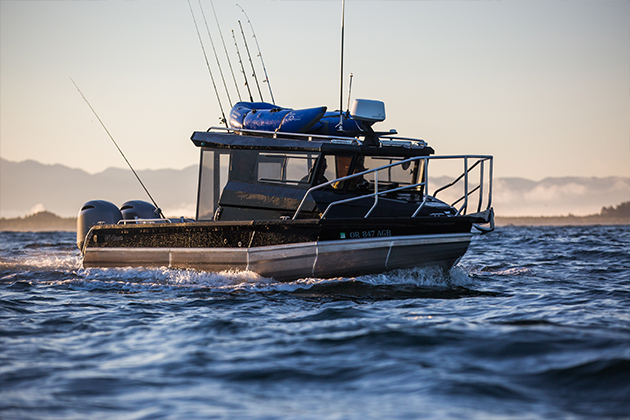

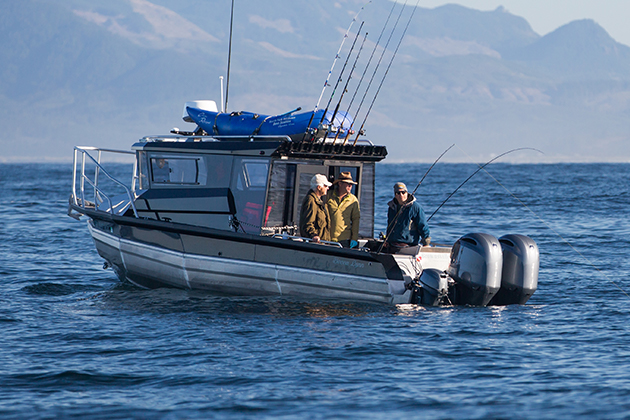

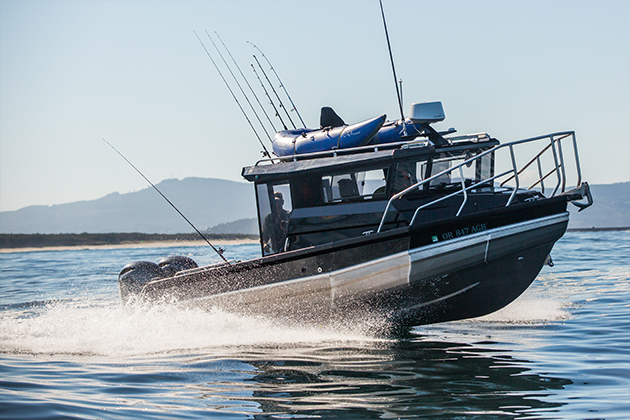

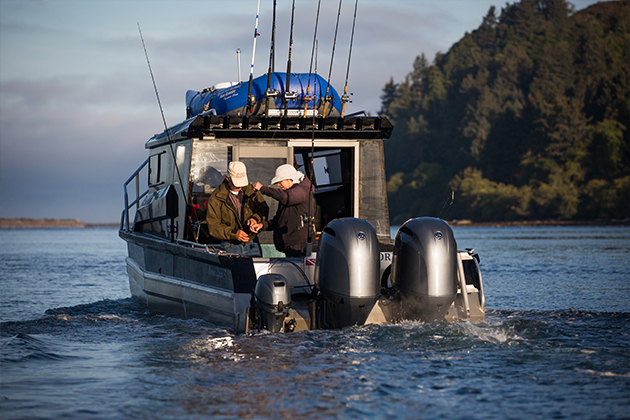

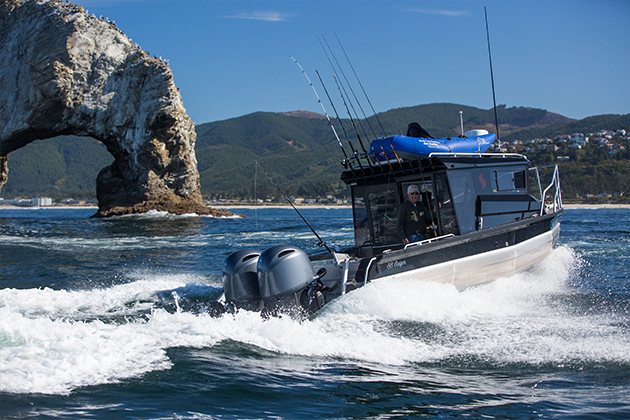

Stabicraft 2500 Ultracab XL

The 2500 Ultracab is an innovative approach to the forward raking windscreens commonly found on traditional Pilothouse models. The 2500 Ultracab incorporates a unique aesthetic that is unmistakably Stabicraft whilst housing multiple interior design innovations to suit multiple boating platforms.


We have the utmost confidence in our manufacturing standards and stand behind every single boat we make. This is reflected in our comprehensive Stabicraft warranty.

Boat Details
  • Make: Stabicraft
  • Name: 2500 Ultracab XL
  • Model Number: N/A
  • Year: 2023
  • Length: 7.62 metres
  • Hull Material: Aluminium
  • Hull Type: Mono
  • Passenger Capacity: 9
  • Boat Usage: N/A
  • Steering: Side Console
  • Warranty: 5 Years


Length Feet (Metres) 7.62m (25ft)
Max Adults 9
Recommended HP 300hp
Maximum HP 400hp
Maximum Engine Weight 584kg (1288lbs)
Leg Length 25"
Fuel Tank 378L (100gal)
External Beam 2.56m (101")
Internal Beam 1.97m (78")
Deadrise 19°
Tube Thickness 4mm (5/32")
Hull Thickness 6mm (15/64")
Reserve Buoyancy (Approx) 2096L (554gal)
Dry Hull Weight (Approx) 1630kg (3593lbs)
Tow Weight (Approx) 3500kg (7716lbs)

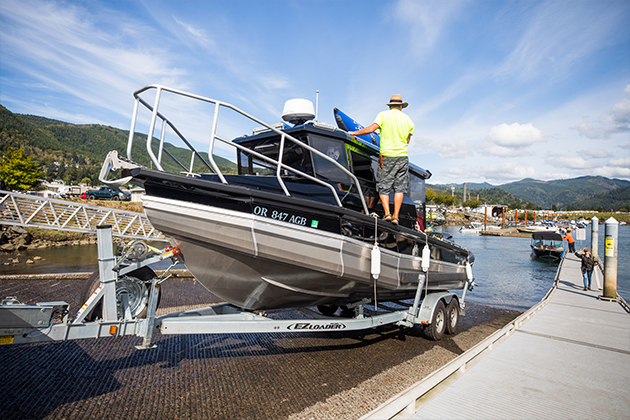

Length on Trailer 9.4m (30'10")


Cabin lining Standard
Starboard sliding window Standard
Port sliding window Standard
SARCA aluminium fairlead Standard
Vee-berth squabs (vinyl) Standard
Battery and oil tank storage Standard
Battery compartment hatch Standard
Bilge pump and well Standard
Cantilever seat bases with storage Standard
Chambered life-ring 4mm (5/32") Standard
Elite bolster seats Standard
Graphics package Standard
Hull 6mm (15/64") Standard
LED cabin lighting Standard
Provision for washdown pump Standard
Rear fold-down seats Standard
Rodholders in aft coamings Standard
Stabi cleats Standard
Stabicraft Multiholders (drink and tackle holders) Standard
Steering - Hydraulic Standard
Underfloor storage Standard
Windscreen wiper x 2 Standard
Wingstyle coamings Standard
Adhesive fendering Standard

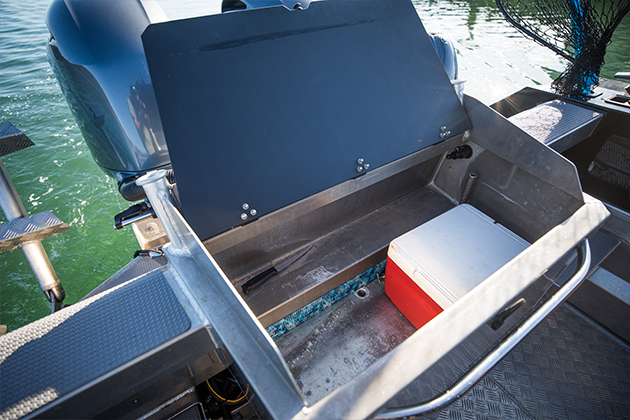

Heavy duty filleting board, drink and rodholders Standard
Rear cabin bulkhead wall with door Standard
Red/white dome cabin light Standard
Roof rodholders Standard
Trim tab mounts Standard
Airwave seat suspension x 2 Standard
Twin bilge pump and wells Standard
Sea Star steering - hydraulic Standard
Single Burner Standard
Transom fold-down seats Standard
Vee-berth fold down extension Standard
Maxwell Drum Winch (rope and chain included) Standard

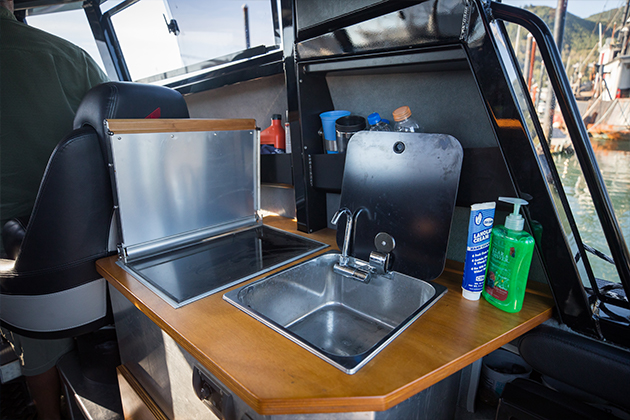

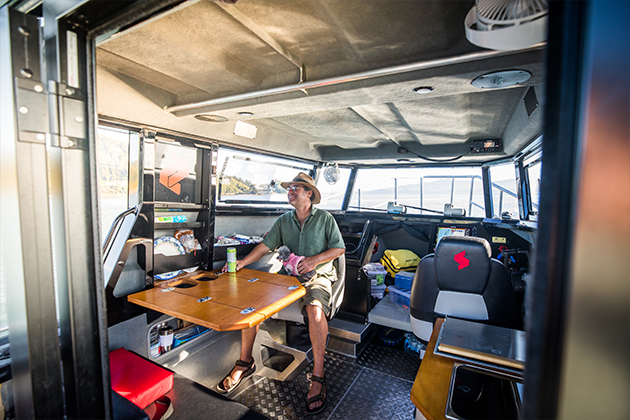

Galley table Standard


Fabric cabin squabs Optional
Anchor, chain and warp Optional
Bow boarding ladder Optional
Diesel heater 4KW Optional
Electric toilet with privacy curtain (no holding tank) Optional
Electric toilet with privacy curtain (with holding tank) Optional
External gunwale handrails Optional
Hull planing strakes Optional
Injected foam in pontoons Optional
Live bait tank Optional
Paint - Cabin only Optional
Paint - Belting up Optional
Paint - Full Optional
Paint - Metallic upgrade Optional
Porta Potti toilet with privacy curtain Optional
Radar tower Optional
Rear boarding ladder (T-bar 2 step) Optional
Trim tabs Optional
Tube floor matting Optional
Washdown pump kit Optional
Tri-mount transom (single 30"/twin 25") Optional
Galley unit Optional


Reserve Buoyancy
NZ CPC Boat Safety Standards
US Coastguard Boat Safety Standards
LED navigation lights
Australian Builders Plate Boat Safety Standards
